Overview

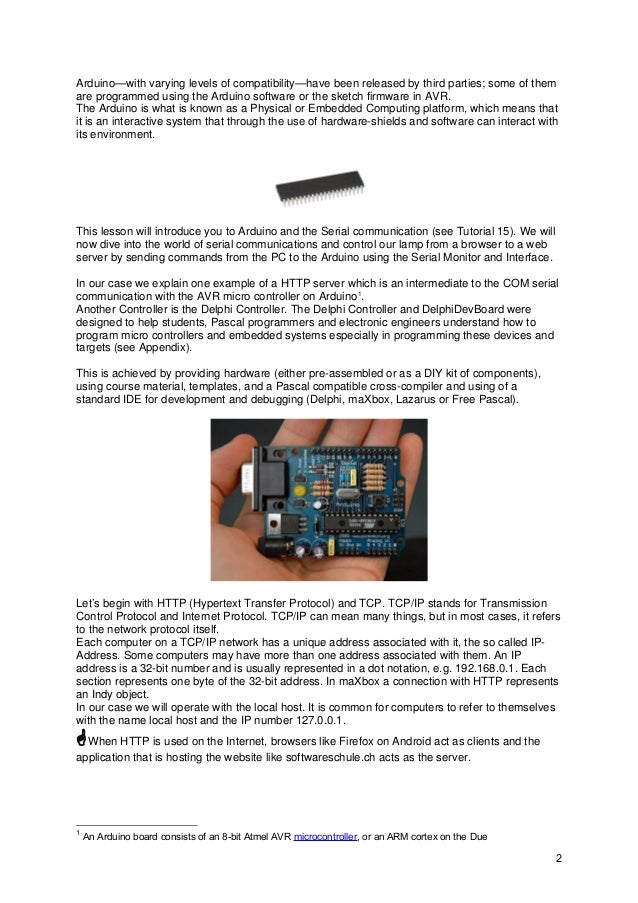

In the existing unit the serial port communication component is instantiated in code rather than being dropped on a form. Now I believe I have two options: 1) Sprinkle the code with conditionams for Delphi/Lazarus and use the 5dpo component and its specific calls for Lazarus and the existing code for Delphi. In Windows I can set the baudrate and parity/stop bit What is the most easy way with FPC to realise this. Example comes with Arduino Sketch and Delphi/Lazarus Project. It uses freeware Synaser library to communicate directly to the serial port. Lucas has also just released version 12 of his Synaser serial port communications suite that also runs under Free Pascal. Indy Original (now dormant) effort: Indy for Lazarus project 119 components Indy for FPC/Lazarus. Newer attempt Indy with Lazarus (Both Indy9 and Indy10) Castle Game Engine, a 3D game engine especially focused on VRML/X3D.

This page describes various ways of accessing hardware devices on Lazarus. These devices include, but are not limited to: ISA, PCI, USB, parallel port, serial port.

Uniform multi-platform access to hardware devices is not implemented by the Free Pascal Runtime Library (RTL) or by the LCL - the underlying operating systems are often different enough to make that very difficult. Therefore, this article will basically cover hardware access methods on different platforms. The code can be compiled on different environments using conditional compiles, like this:

Parallel and Serial Comparison

ISA cards, PCI cards and the Parallel Port communicate with the computer using a parallel protocol. The Serial Port and USB devices work with a serial protocol. Because the processor and thus programming languages all work on a parallel approach to data, access to these kinds of protocols is easier to be implemented on the software side. When an Integer variable is accessed for example, its value can be accessed with a single command. With a serial protocol however, only one bit at a time can be accessed and the pieces need to be 'glued' together to understand the data.

Serial communication is difficult to be implemented directly, but it can be pretty easy if pre-made component are used. It is also harder on the hardware side, so many devices use specialised integrated circuits or microcontrolers to implement it.

Now a brief comparison of hardware access protocols will be given:

Component
SpeedHardware implementation difficulty
Serial PortVery slow (< E5 bit/s)Medium
Parallel PortSlow (~ E6 bit/s)Easy
ISA CardMedium (~ E7 bit/s)Medium
USBMedium (~ E7 bit/s)Hard
PCI CardVery Fast (> E9 bit/s)Very Hard

Parallel Communication

Using inpout32.dll for Windows

Windows has different ways to access hardware devices on the 9x and NT series. On the 9x series (95, 98, Me) programs can access the hardware directly, just like they did on DOS. The NT series (Windows NT and XP), however, do not allow this approach. On this architecture, all communication with hardware ports must be through a device driver. This is a security mechanism, but developing a driver for small projects can cost too much in terms of time and money.

Fortunately there is a library that solves this problem. If Windows NT is detected, it decompresses the HWInterface.sys kernel device driver and installs it. If Windows 9x is detected, it simply uses assembler opcodes to access the hardware.

The library has only two functions, Inp32 and Out32, and their use is quite intuitive.

The library will be loaded dynamically, so define both functions first:

  • 'Address' represents the address of the port to be accessed
  • 'Out32' sends data to the port specified by 'Address'
  • 'Inp32' returns a byte from the port specified by 'Address'

Now the library can be loaded. This may be implemented in the 'OnCreate' method of the program's main form:

If the library is loaded on 'OnCreate', it must be unloaded in 'OnDestroy':

Here is a simple example of how to use the 'Inp32' function:

This code was tested with a custom ISA card on port $0220, using Lazarus 0.9.10 on Windows XP. Of course 'Windows' must be in the uses clause in order for this code to run.

Note: For deployment 'inpout32.dll' must be in the same directory of the application. Also the library has to be registered in 'system' by the 'administrator' user on Windows NT/XP/2000 or elevated privileges on Windows Vista/7. This can be done by installation of a program such as InnoSetup:


This is the homepage for the library: www.logix4u.net/inpout32.htm (see discussion).

Using assembler on Windows 9x

Fallout 3 for ps4. On Windows 9x assembler code can be used. Suppose one wants to write $CC to the $320 port. The code to do that is:

Troubleshooting on Windows

One possible source of trouble using parallel hardware that does not support Plug And Play on Windows is that Windows may assign the port utilized by the hardware to another device. Instructions on how to tell Windows not to assign the address of a device to Plug And Play devices can be found at http://support.microsoft.com/kb/135168

Using 'ioperm' to access ports on Linux

The best way to access the hardware on Linux is through device drivers, but, due to the complexity of the task of creating a driver, sometimes a quick method is very useful.

Serial

In order to use the 'ports' unit under Linux the program must be run as root, and IOPerm must be called to set appropriate permissions on the port access. Documentation about the 'ports' unit can be found here: http://www.freepascal.org/docs-html/rtl/ports/index.html

The first thing to do is link to (g)libc and call IOPerm. A unit that links to the entire (g)libc exists on free pascal, but this unit gives problems when used directly by an application and linking statically to the entire (g)libc library is not good practise as it changes often between versions in an incompatible manner. Functions like ioperm, however, are unlikely to change.

  • 'from' represents the first port to be accessed.
  • 'num' is the number of ports after the first to be accessed, so ioperm($220, 8, 1) will give access for the program for all ports between and including $220 and $227.

After linking to IOPerm, port[<Address>] will access the ports.

This code was tested with a custom ISA card on port $0220, using Lazarus 0.9.10 on Mandriva Linux 2005 and Damn Small Linux 1.5

General UNIX hardware access


Note What does ctrl shift q q do. : FPC provides an abstraction for ioperm called 'fpioperm' in unit x86, and also defines fpIOPL and out-/inport functions. These functions are currently implemented for Linux/x86, Linux/x86_64 and FreeBSD/x86, FreeBSD/x86_64.

It is not recommended to link to libc unless absolutely necessary due to possible deployment and portability functions. Also manual linking to libc (by declaring ad hoc libc imports for functions that are available elsewhere) like done above is not recommended (e.g. the above libc import line will unnecessarily fail if the standard C lib is not called libc, like e.g. libroot on BeOS, or on platforms with a non standard C symbol mangling).

Note 2: Using unit libc is not recommended under any circumstances other than Kylix compatibility. See libc unit

Status and control

Besides data lines, the parallel port also has status and control lines which are accessed using the status and control registers. While the base address accesses the data lines and reads or writes data bytes from/to them, the status register is accessed on the address offset by +1 and the control register is accessed on the offset +2. For example, LPT1 (first parallel port on a PC) has the base address $378, so its status register is at $379 and control register at $380. To get individual status line states, read a byte from its address and its bits represent those lines. Setting control lines is similarly done by writing a byte with accordingly set bits to the control register.

Newer bidirectional parallel port versions have more registers on higher offsets. More details about them, together with information which bits map to which lines can be found here.

Most directly accessed hardware devices other than PC parallel ports are controlled in a similar way. Depending on the device in question, it is necessary to find out what registers are available (above mentioned control and status, but also address and other registers) and which bits represent which hardware functions.

Serial Communication

Device Setup

Before starting, make sure to authorize your device on Linux. An option is to create a persistent UDEV rule for each device. For example, the following approach apply mode '0064' for the device specified by 'serial', 'idVendor' and 'idProduct' attributes:


Synaser

It is very easy to build a serial communication software using the Synaser library. The example when used together with the Synaser documentation should be trivial to understand. The most important part is TBlockSerial.Config to configure the speed (in bits per second), data bits, parity bits, stop bits and handshake protocol, if any. The following code was tested with a serial mouse connected to COM1.

The following code-example is an alternative version of the example above. The example above has a critical bug in its main concept, to be exact, it is the part with 'while true do..'. On the test system (Asus A6T laptop with Digitus USB to RS232 Adapter, Ubuntu 8.04.1), this part caused the following error: the application ran only one time successfully per session, when the application was started again, the application was unable to connect to the serial port. Thus, a reboot was necessary everytime the user tried to relaunch the application.

The reason is not difficult to understand: The application is in the while true do - loop, which is, to be more precise, an endless loop. There is no abort-condition, so the only way to close the application is to close the terminal or to press CTRL-C. But if the application is aborted this way, the important part with 'ser.free', which frees the serial port, will never be called. This problem is described in the following thread in the German Lazarus-Forum http://www.lazarusforum.de/viewtopic.php?f=10&t=2082

There is a bit of code around the main application to make it clear to the user not to press CTRL-C. /dev/ttyUSB0 is used for the com-port due to the USB to Serial Adapter (from Digitus) on the test-system. With a built-in serial port, use the 'Com0' - declaration like in the code - example above.

Also, the External Links section has UNIX and Windows serial port tutorials.

Note the function of the TBlockSerial.LinuxLock parameter under linux. When set to default of True, a connect will try to create a lock file (eg. 'LCK.ttyUSB0') under /var/lock and fail if a lock already exists for the requested port. The lock file will be left over if Free was not called. Setting LinuxLock to False will make Synaser ignore port locking.

There are alternatives to Synaser; see below.

Visual Synapse

Visual Synapse has lots of component wrappers for many parts of Synapse serial and networking library. TvsComPort is a visual component wrapper around Synaser.

5dpo

There is also a visual component 5dpo based on Synaser.

TLazSerial

Based on 5dpo (and therefore Synapse): http://forum.lazarus.freepascal.org/index.php/topic,20481.0.html

FPC built in Serial unit

Lazarus Programming

Another serial unit is part of FreePascal since version 2.2.2: just put 'Serial' in the Uses list. However there does not seem to be any documentation other than the Serial.pp source file and some discussions.

An example using FPC 2.6.2 on WIN7.

TDataPort

DataPort is a thread-safe abstract port for data exchange. It is used for communication over networks (TCP/UDP/HTTP), serial ports (UART, COM-port, FTDI), device files (ioctl supported) and conventional file named pipes. For serial communication it has TDataPortSerial and TDataPortFtdi descendants. Small example can be found in demo and here.

PXL

PXL (Platform eXtended Library) for low level native access to serial ports, GPIO, I²C, SPI, PWM, V4L2, displays and sensors.

Serial port names on Windows

COM ports are named with a number on Windows 9x-based OSes (95, 98, ME), e.g. COM1, COM30.

On Windows NT-based systems (NT, 2000, XP, Vista, Windows 7, Windows 8), COM ports are numbered too, but only for compatibility with DOS/Win9x.

Use this code to get the real name:

USB

libusb

A cross platform possibility for Windows, Linux, BSDs and macOS is libusb.

Lazarus Component Library

Headers are listed in http://www.freepascal.org/contrib/db.php3?category=Miscellaneous:

  • Serial Communication Links:
  1. On UNIX: [1]
  2. On Windows: http://msdn.microsoft.com/library/default.asp?url=/library/en-us/dnfiles/html/msdn_serial.asp
  3. Synaser component: http://synapse.ararat.cz/
  4. Comport Delphi package: http://sourceforge.net/projects/comport/
  • Digital Oscilloscope - A example of hardware access with full source included.
